| 种类：其他 | 加工定制：否 | 制作工艺：集成 |
| 品牌：杰诺 | 型号：LM12-3004NA,LM12-3004PA | 输出信号：开关型 |

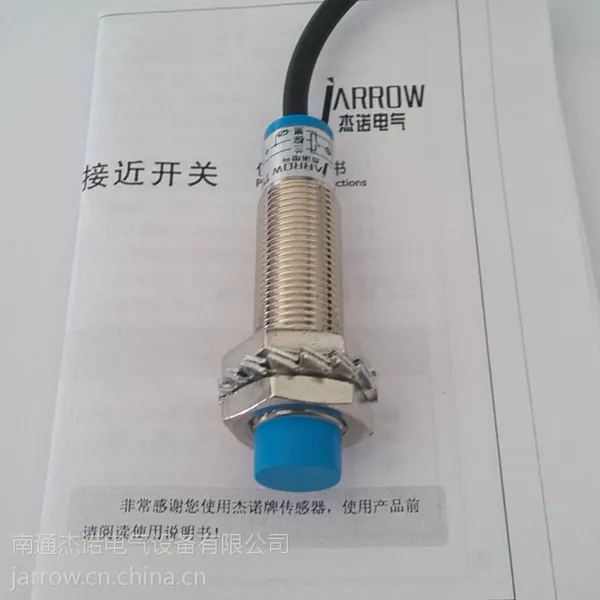

| 额定感应距离Sn | 输出状态 | 直径12mm接近开关具备型号（南通杰诺电气） | ||||
| NPN（三线） | PNP（三线） | 直流（两线） | 交流（两线） | |||
| 非埋入式 | 4mm | 常开 | LM12-3004NA | LM12-3004PA | LM12-3004LA | LM12-2004A |
| 常闭 | LM12-3004NB | LM12-3004PB | LM12-3004LB | LM12-2004B | ||
| 开+闭 | LM12-3004NC | LM12-3004PC | ||||
| 埋入式 | 2mm | 常开 | LM12-3002NA | LM12-3002PA | LM12-3002LA | LM12-2002A |
| 常闭 | LM12-3002NB | LM12-3002PB | LM12-3002LB | LM12-2002B | ||
| 开+闭 | LM12-3002NC | LM12-3002PC | ||||
| 技术指标 | 工作频率 | 非埋入式400Hz | 非埋入式400Hz | 200Hz | 10Hz | |
| 埋入式800Hz | 埋入式800Hz | 200Hz | 10Hz | |||
| 额定工作电压 | 10-30VDC | 10-30VDC | 10-30VDC | 90-250VAC | ||
| 额定工作电流 | ≤200mA | ≤200mA | ≤200mA | ≤200mA | ||
| 极性保护 | 具备 | 具备 | 具备 | |||
| 短路保护 | 具备 | 具备 | 具备 | |||
| 动作指示 | LED | LED | LED | LED | ||
| 工作环境温度 | -25℃～+75℃ | -25℃～+75℃ | -25℃～+75℃ | -25℃～+75℃ | ||
| 电压降 | ≤2.5V | ≤2.5V | ≤7V | ≤6.5V | ||
| 回差 | ≤15%Sn | ≤15%Sn | ≤15%Sn | ≤15%Sn | ||
| 重复精度 | ≤5%Sn | ≤5%Sn | ≤5%Sn | ≤5%Sn | ||
| 机械数据 | 外壳材料 | 黄铜镀铬 | 黄铜镀铬 | 黄铜镀铬 | 黄铜镀铬 | |
| 连接 | 电缆 | 电缆 | 电缆 | 电缆 | ||
| 保护分类 | IP67 | IP67 | IP67 | IP67 | ||
